Produces professional button badges very quickly. Easy to use machine that comes with full operating instructions including template sizes.

Our machines are also capable of making other products, dependant upon size of badge machine chosen. Products/components available include button pin badges, button fridge magnets, button pocket mirrors, button bottle openers and button safety badges. Please note: each different size will need their own machine.

Technical Information and Dimensions

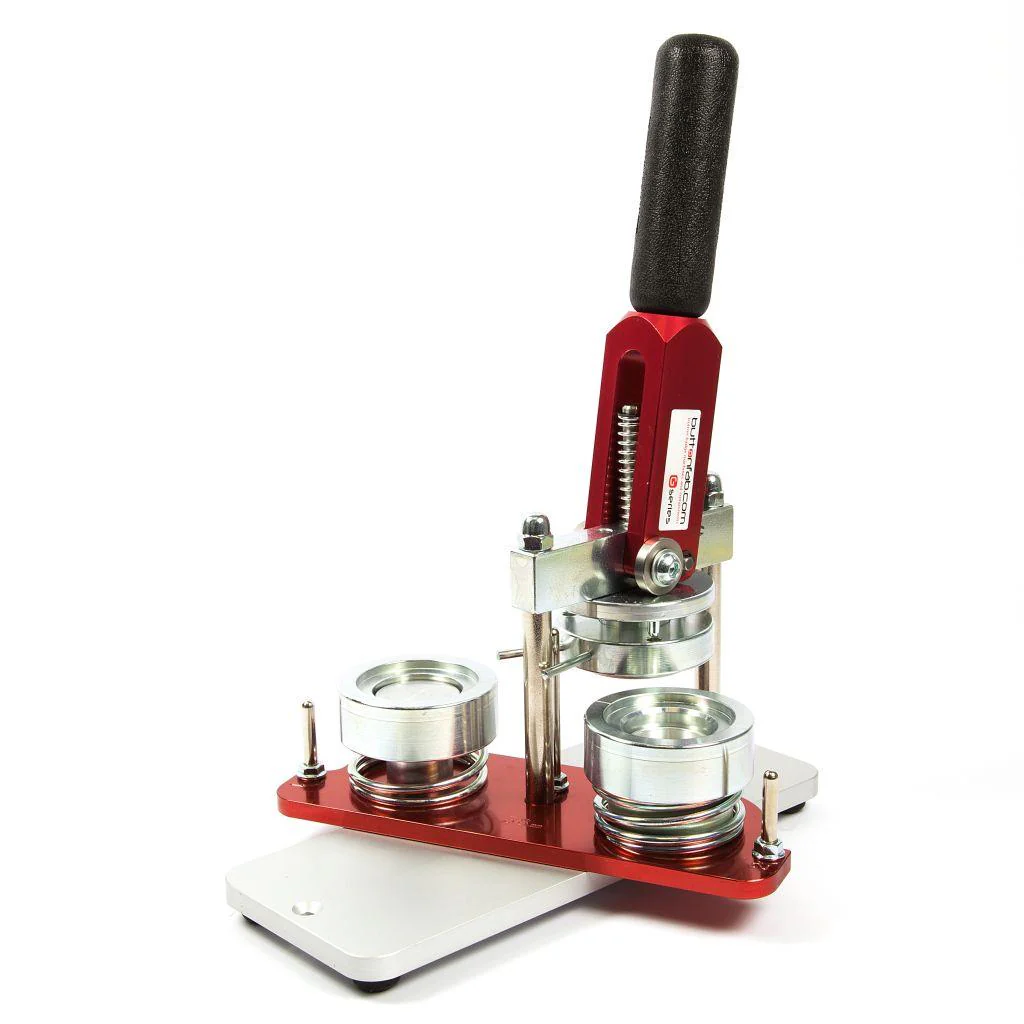

• High-quality semi-automatic desktop button badge machine
• Competitively priced components meaning low cost per badge
• Weight 3.8kg
• Approx Size 100mm(W) x 260mm(D) x 340mm(H) (H=when handle raised)
• Easy pull down action and fast swing-track operation
• Pre drilled countersunk holes to enable permanent fixing to work surface if required
• 4 rubber feet attached giving extra surface grip if used freestanding
• Capacity : 300 badges/hour
• Two non-interchangeable moulds
• Artwork required cut size - 51mm

Assembly Instructions

• Remove the machine from packaging, position and screw lever handle into machine
• Prepare components needed for production (these are to be purchased separately)

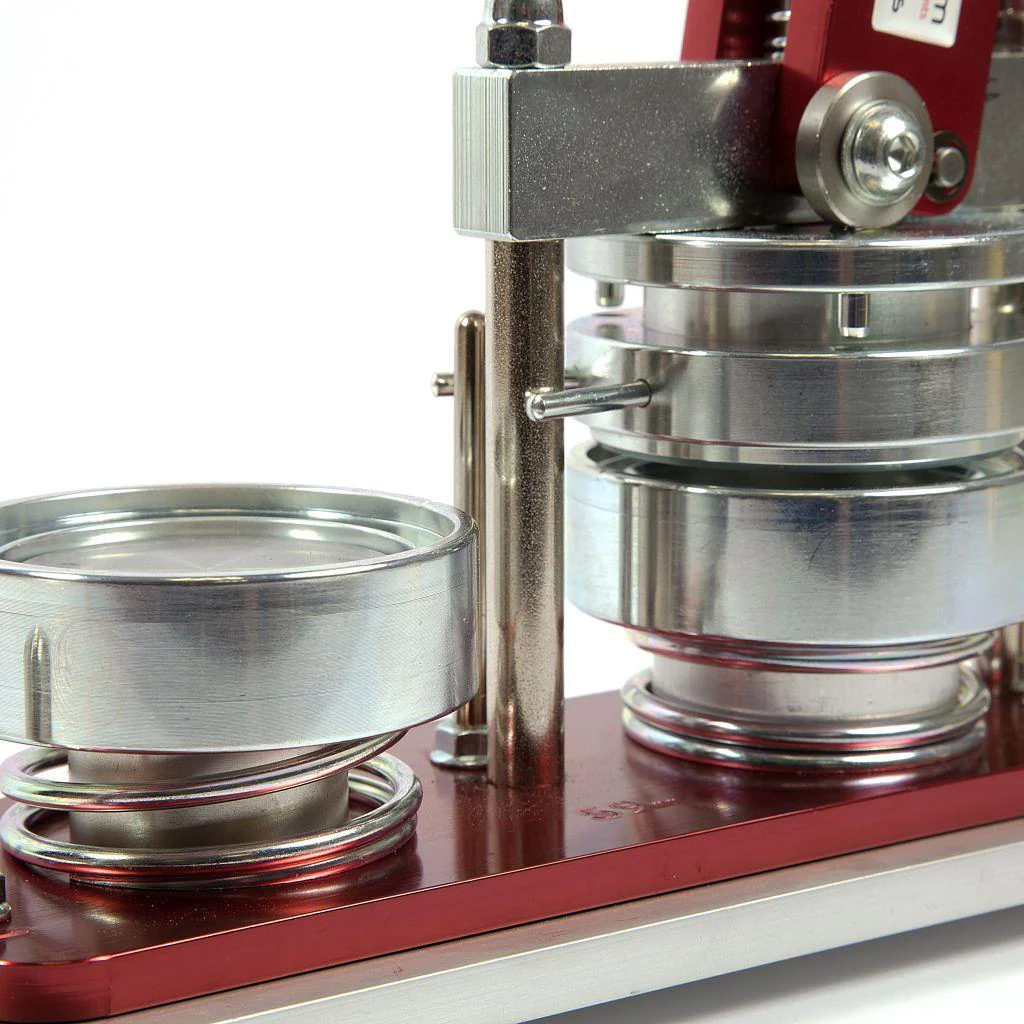

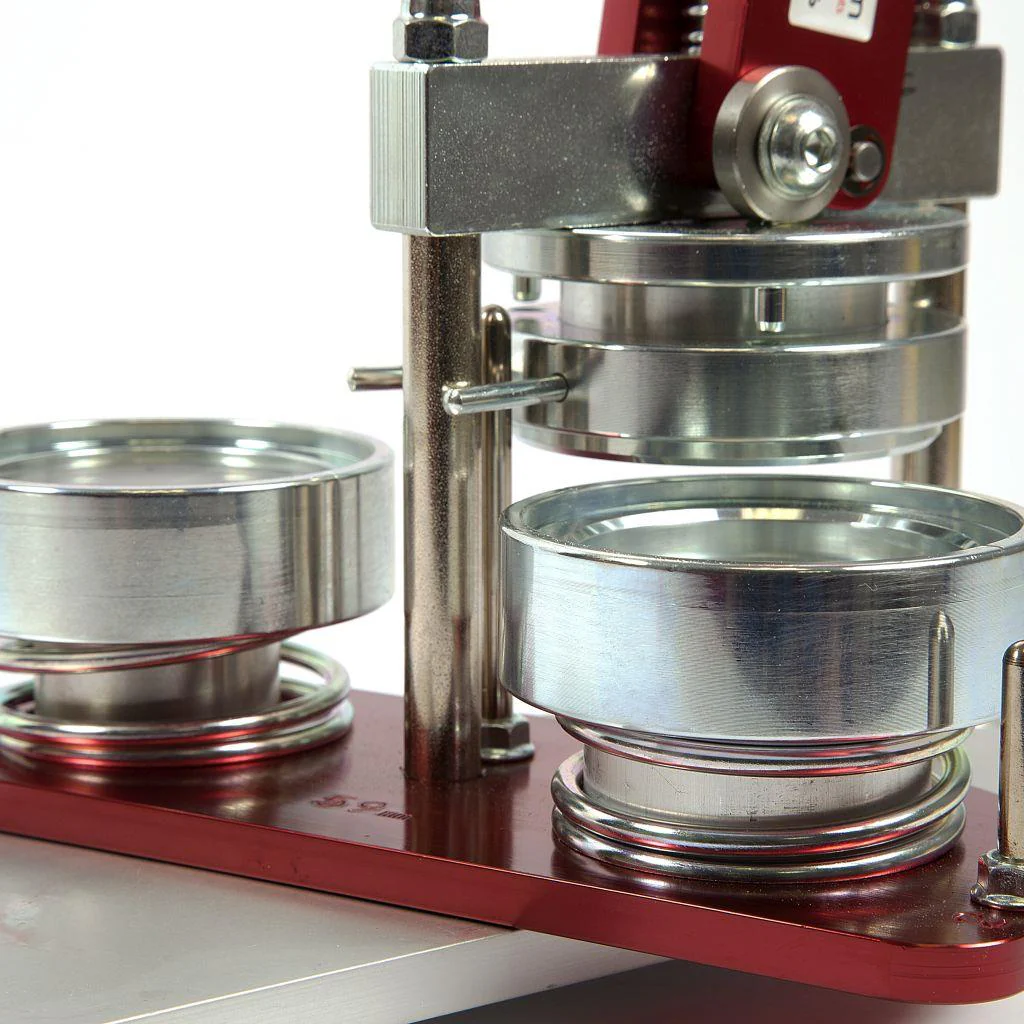

• Moulds are fixed to the revolving plate and are marked 1 and 2
• Place mould number 1 in front of you
• Place the front plate into the round mould
• Place your cut to size artwork over the front plate
• Place the mylar on top of the artwork
• Revolve the plate clockwise until mould 2 is in front of you and pull lever down to close the mould
• Place the back component into mould 2 needle facing down for pins
• Revolve the mould clockwise again, pull the lever down and press
• Revolve moulds and remove finished badge
